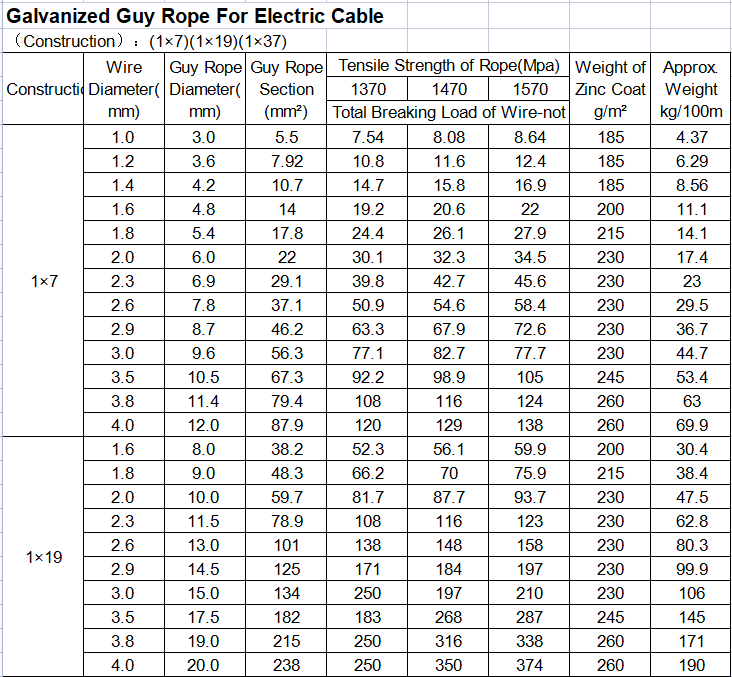

Steel Wire Rope

Steel Wire Rope






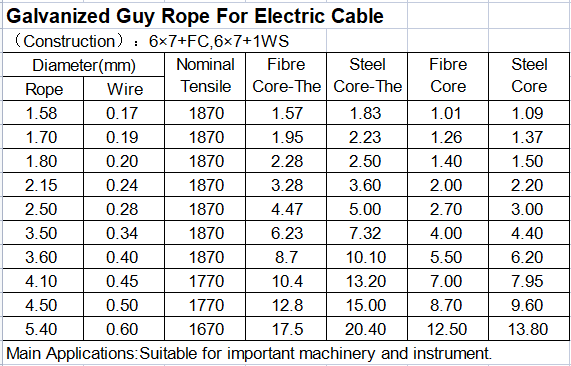

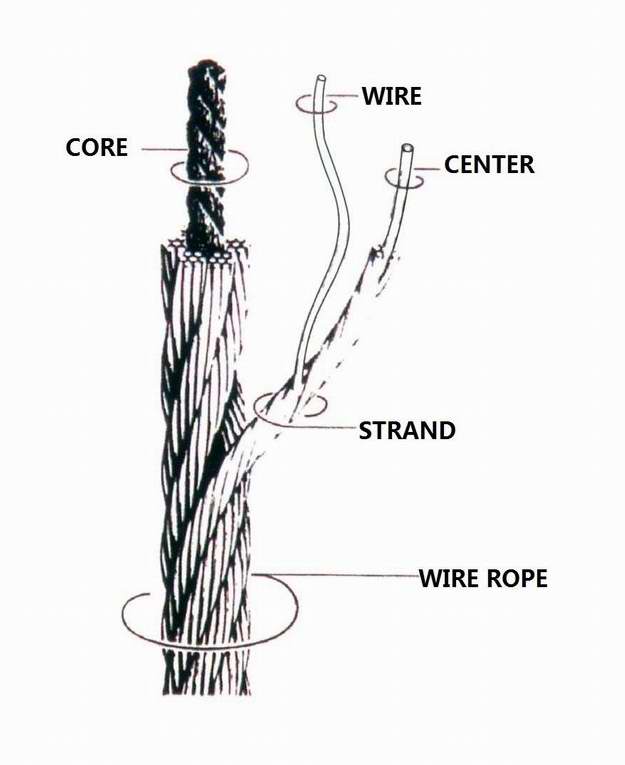

6×7 or  6×9 Steel Wire Rope(Ungalvanized and Galvanized)

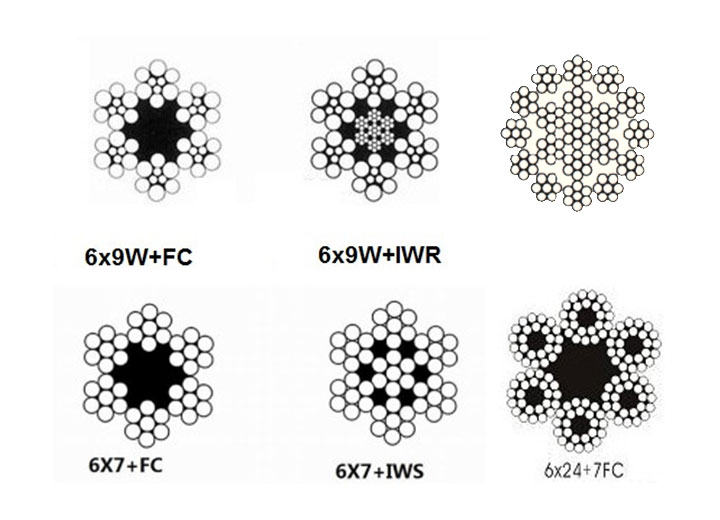

(Construction):6×7+FC 6×7+IWS 6×9W+FC 6×9W+IWR(Ungalvanized and Galvanized)

Nominal Diameter
Approx.Weight
Nominal Tensile Strength of Rope(Mpa)
1570
1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS
FC
IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
mm kg/100m
(KN)
2 1.4 1.38 1.55 2.08 2.25 2.22 2.4 2.35 2.54 2.48 2.69 2.6 2.81
3 3.16 3.10 3.48 4.69 5.07 4.99 5.4 5.29 5.72 5.59 6.04 5.86 6.33
4 5.62 5.5 6.19 8.34 9.02 8.87 9.59 9.4 10.2 9.93 10.7 10.4 11.3
5 8.87 8.60 9.68 13 14.1 13.9 15 14.7 15.9 15.5 16.8 16.3 17.6
6 12.6 12.4 13.9 18.8 20.3 20 21.6 21.2 22.9 22.4 24.2 23.4 25.3
7 17.2 16.9 19 25.5 27.6 27.2 29.4 28.8 31.1 30.4 32.9 31.9 34.5
8 22.5 22.0 24.8 33.4 36.1 35.5 38.4 37.6 40.7 39.7 43 41.7 45
9 28.4 27.9 31.3 42.2 45.7 44.9 48.6 47.6 51.5 50.3 54.4 52.7 57
10
35.1 34.4 38.7 52.1 56.4 55.4 60 58.8 63.5 62.1 67.1 65.1 70.4
11
42.5 41.6 46.8 63.1 68.2 67.1 72.5 71.1 76.9 75.1 81.2 78.7 85.1
12
50.5 49.5 55.7 75.1 81.2 79.8 86.3 84.6 91.5 89.4 96.7 93.7 101
13
59.3 58.1 65.4 88.1 95.3 93.7 101 99.3 107 105 113 110 119
14
68.8 67.4 75.9 102 110 109 118 115 125 122 132 128 138
16 89.9 88.1 99.1 133 144 142 153 150 163 159 172 167 180
17
101 99.4 112 151 163 160 173 170 184 179 194 188 203
18
114 114 125 169 183 180 194 190 206 201 218 211 228
20
140 138 155 209 225 222 240 235 254 248 269 260 281
22 170 167 187 252 273 268 290 284 308 300 325 315 341
24
202 198 223 300 325 319 345 338 366 358 387 375 405
26
237 233 262 352 381 375 405 397 430 420 454 440 476
28 275 270 303 409 442 435 470 461 498 487 526 510 552
30
316 310 348 469 507 499 540 529 572 559 604 586 633
32 359 352 396 534 577 568 614 602 651 636 687 666 721
34
406 398 447 603 652 641 693 679 735 718 776 752 813
36
455 446 502 676 730 719 777 762 824 805 870 843 912
38 507 497 559 753 814 801 866 849 918 896 969 940 1020
40
562 550 619 834 902 887 959 940 1020 993 1070 1040 1130
42 619 607 683 919 994 978 1060 1040 1120 1110 1180 1150 1240
44
680 666 749 1010 1090 1070 1160 1140 1230 1200 1300 1260 1360
46 743 728 819 1100 1190 1170 1270 1240 1340 1310 1420 1380 1490
48
809 793 892 1200 1300 1280 1380 1350 1460 1430 1550 1500 1620
50
878 860 968 1300 1410 1390 1500 1470 1590 1550 1680 1630 1760

Main Applications:Various cable carriage,rope and belt conveyer,ropeway drawing,slope winch,etc.


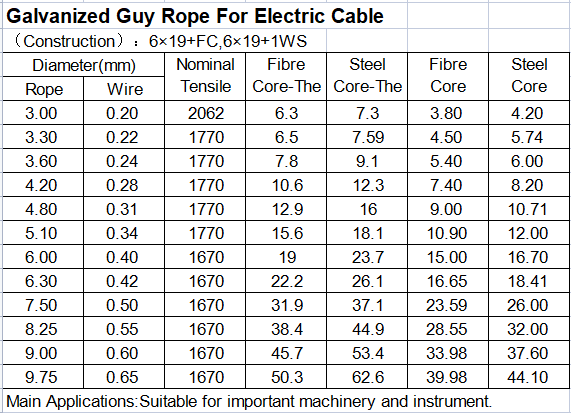

6×19 Steel Wire Rope(Ungalvanized and Galvanized)

(Construction):6×19+FC 6×19+1WS 6×19W+1WR


Nominal Diameter
Approx.Weight
Nominal Tensile Strength of Rope(Mpa)
1570
1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS
FC
IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
mm kg/100m
(KN)
3 3.16 3.1 3.6 4.34 4.69 4.61 4.99 4.89 5.29 5.17 5.59 5.42 5.86
4 5.62 5.5 6.4 7.71 8.34 8.2 8.87 8.69 9.4 9.19 9.93 9.63 10.4
5 8.78 8.6 10 12

13

12.8 13.9 13.6 14.7 14.4 15.5 15 16.3
6 12.6 12.4 14.4 17.4 18.8 18.5 20 19.6 21.2 20.7 22.4 21.7 23.4
7 17.2 16.9 19.6 23.6 25.5 25.1 27.2 26.6 28.8 28.1 30.4 29.5 31.9
8 22.5 22 25.6 30.8 33.4 32.8 35.5 34.8 37.6 36.7 39.7 38.5 41.7
9 28.4 27.9 32.4 39 42.2 41.5 44.9 44 47.6 46.5 50.3 48.7 52.7
10 35.1 34.4 40 48.2 52.1 51.3 55.4 54.3 58.8 57.4 62.1 60.2 65.1
11
42.5 41.6 48.4 58.3 63.1 62 67.1 65.8 71.1 69.5 75.1 72.8 78.7
12
50.5 49.5 57.6 69.4 75.1 73.8 79.8 78.2 84.6 82.7 89.4 86.7 93.7
13
59.3 58.1 67.6 81.5 88.1 86.6 93.7 91.8 99.3 97 105 102 110
14
68.8 67.4 78.4 94.5 102 101 109 107 115 113 122 118 128
15 79 77.4 90 108 117 115 125 122 132 129 140 135 146
16 89.9 88.1 102 123 133 131 142 139 150 147 159 154 167
17
101 99.4 116 139 151 148 160 157 170 166 179 174 188
18
114 111 130 156 169 166 180 176 190 186 201 195 211
20
140 138 160 193 209 205 222 217 235 230 248 241 260
22 170 167 194 233 252 248 268 263 284 278 301 291 315
24
202 198 230 278 300 295 319 313 339 331 358 347 375
26
237 233 270 326 352 347 375 367 397 388 420 407 440
28 275 270 314 378 409 402 435 426 461 450 487 472 510
30
316 310 360 434 469 461 499 489 529 517 559 542 586
32 359 352 410 494 534 525 568 556 602 588 636 616 666
34
406 398 462 557 603 593 641 628 679 664 718 696 752
36
455 446 518 625 676 664 719 704 762 744 805 780 843
38 507 497 578 696 753 740 801 785 849 829 897 869 940
40
562 550 640 771 834 820 887 869 940 919 993 963 1040
42 619 607 706 850 920 904 978 959 1040 1010 1100 1060 1150
44
680 666 774 933 1010 993 1070 1050 1140 1110 1200 1160 1260
46 743 728 846 1020 1100 1080 1170 1150 1240 1210 1310 1270 1380
48
809 793 922 1110 1200 1180 1280 1250 1350 1320 1430 1390 1500
50
878 860 1000 1210 1300 1280 1390 1360 1470 1440 1550 1500 1630
52
949 930 1080 1300 1410 1390 1500 1470 1590 1550 1680 1630 1760
54 1024 1000 1170 1410 1520 1500 1620 1580 1710 1670 1810 1750 1900
56 1100 1080 1250 1510 1630 1610 1740 1700 1840 1800 1950 1890 2040
58 1180 1160 1350 1620 1750 1720 1870 1830 1980 1930 2090 2020 2190
60 1260 1240 1440 1740 1880 1850 2000 1960 2120 2070 2240 2170 2340
62 1350 1320 1540 1850 2000 1970 2130 2090 2260 2210 2390 2310 2500
64 1440 1410 1640 1970 2140 2100 2270 2230 2410 2350 2540 2460 2670
66 1530 1500 1740 2100 2270 2230 2420 2370 2560 2500 2700 2620

2830

68 1620 1590 1850 2230 2410 2370 2560 2510 2720 2650 2870 2780 3010
70 1720 1690 1960 2360 2550 2510 2720 2660 2880 2810 3040 2950 3190
72 1820 1780 2070 2500 2700 2660 2870 2820 3050 2980 3220 3120 3370
74 1920 1880 2190 2640 2850 2810 3040 2980 3220 3140 3400 3300 3560
76 2030 1990 2310 2780 3010 2960 3200 3140 3390 3320 3590 3480 3760
78 2140 2090 2430 2930 3170 3120 3370 3310 3580 3490 3780 3660 3960
80 2250 2220 2560 3080 3340 3280 3550 3480 3760 3670 3970 3850 4160

Main Applications:Various equipment for hoisting,derricking,lifting and drawing.


6×37 Steel Wire Rope(Ungalvanized and Galvanized)

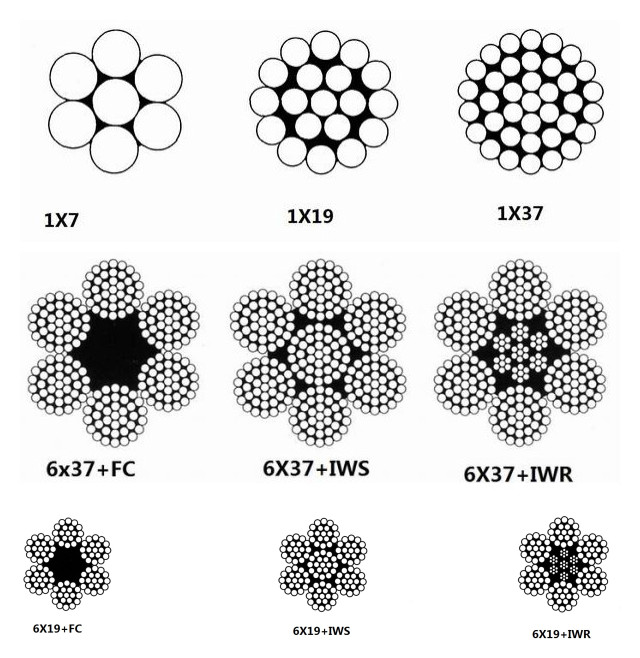

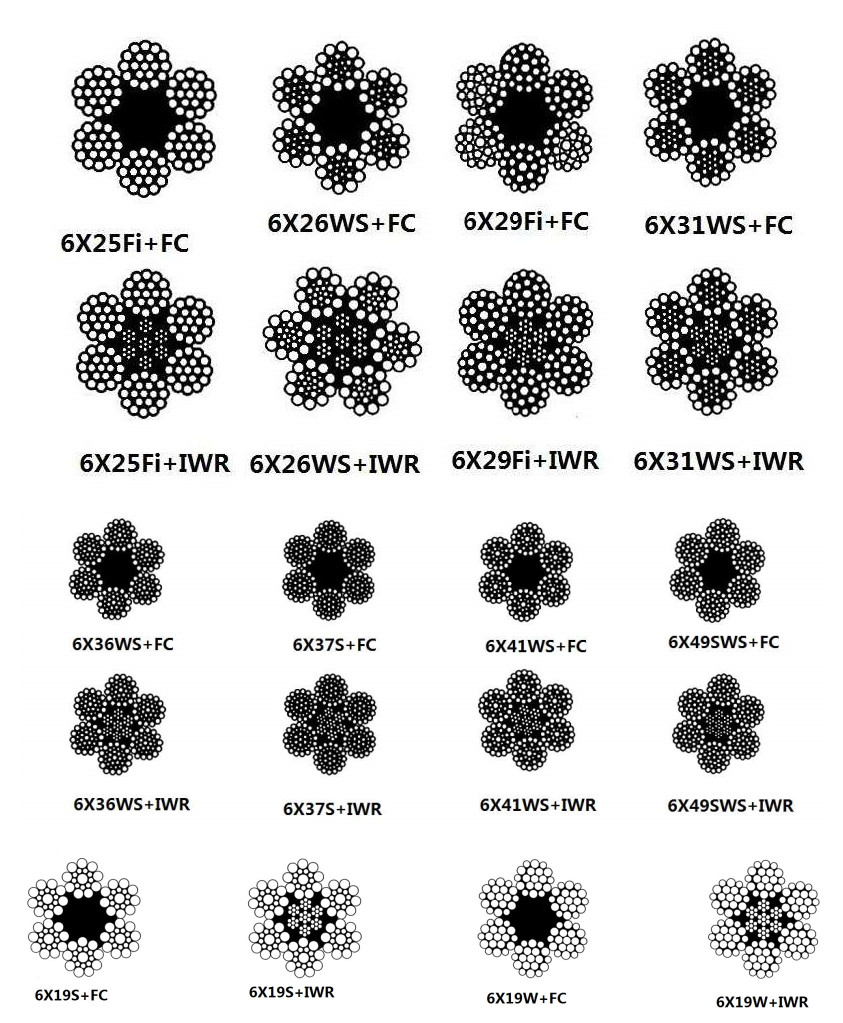

(Construction):6×19S+FC 6×19S+1WR 6×19W+FC 6×19W+1WR


Nominal Diameter
Approx.Weight
Nominal Tensile Strength of Rope(Mpa)
1570
1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS
FC
IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
FC IWR/IWS
mm kg/100m
(KN)
5 8.65 8.43 10 11.6 12.5 12.3 13.3 13.1 14.1 13.8 14.9 14.5 15.6
6 12.5 12.1 14.4 16.7 18 17.7 19.2 18.8 20.3 19.9 21.5 20.8 22.5
7 17 16.5 19.6 22.7 24.5 24.1 26.1 25.6 27.7 27 29.2 28.3 30.6
8 22.1 21.6 25.6 29.6 32.1 31.5 34.1 33.4 36.1 35.3 38.2 37 40
9 28 27.3 32.4 37.5 40.6 39.9 43.2 42.3 45.7 44.7 48.3 46.8 50.6
10 34.6 33.7 40 46.3 50.1 49.3 53.3 52.2 56.5 55.2 59.7 57.8 62.5
11 41.9 40.8 48.4 56 60.6 59.6 64.5 63.2 68.3 66.7 72.2 70 75.7
12 49.8 48.5 57.6 66.7 72.1 70.9 76.7 75.2 81.3 79.4 85.9 83.3 90
13
58.5 57 67.6 78.3 84.6 83.3 90 88.2 95.4 93.2 101 97.7 106
14
67.8 66.1 78.4 90.8 98.2 96.6 104 102 111 108 117 113 123
15
77.9 75.8 90 104 113 111 120 118 127 124 134 130 141
16
88.6 86.3 102 119 128 126 136 134 145 141 153 148 160
18
112 109 130 150 162 160 173 169 183 179 193 187 203
20 138 135 160 185 200 197 213 209 226 221 239 231 250
22
168 163 194 224 242 238 258 253 273 267 289 280 303
24
199 194 230 267 289 284 307 301 325 318 344 333 360
26 234 228 270 313 339 333 360 353 382 373 403 393 423
28 271 264 314 363 393 386 418 409

443

433 468 453 490
30
311 303 360 417 451 443 480 470 508 497 537 520 563
32
354 345 410 474 513 505 546 535 578 565 611 592 640
34 400 390 462 535 579 570 616 604 653 638 690 668 723
36
448 437 518 600 649 639 690 677 732 715 773 749 810
38 500 487 578 669 723 711 769 754 815 797 861 835 903
40 554 539 640 741 801 788 852 835 903 883 954 925 1000
42
610 595 706 817 884 869 940 921 996 973 1052 1020 1100
44 670 652 774 897 970 954 1031 1011 1093 1068 1155 1120 1210
46 732 713 846 980 1060 1040 1130 1100 1190 1170 1260 1220 1320
48 797 776 922 1070 1150 1140 1230 1200 1300 1270 1370 1330 1440
50
865 843 1000 1160 1250 1230 1330 1310 1410 1380 1490 1450 1560
52 936 911 1080 1250 1350 1330 1440 1410 1530 1490 1610 1560 1690
54
101 983 1170 1350 1460 1440 1550 1520 1650 1610 1740 1690 1820
56
1090 1060 1250 1450 1570 1550 1670 1640 1770 1730 1870 1810 1960
58












60












62












64












66












68












70












72












74












76












78












80












85












90












95












100












105












110












115












120












Main Applications:Various equipment for hoisting,derricking,lifting and drawing.
