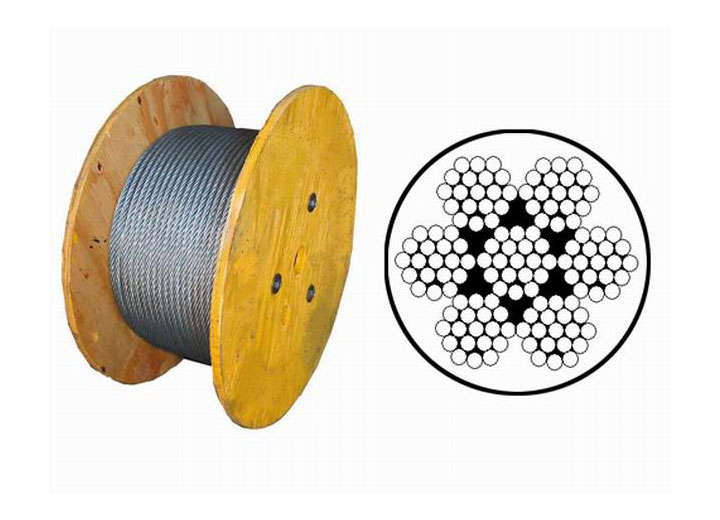

  • 6×37 Steel Wire Rope(Ungalvanized and Galvanized)

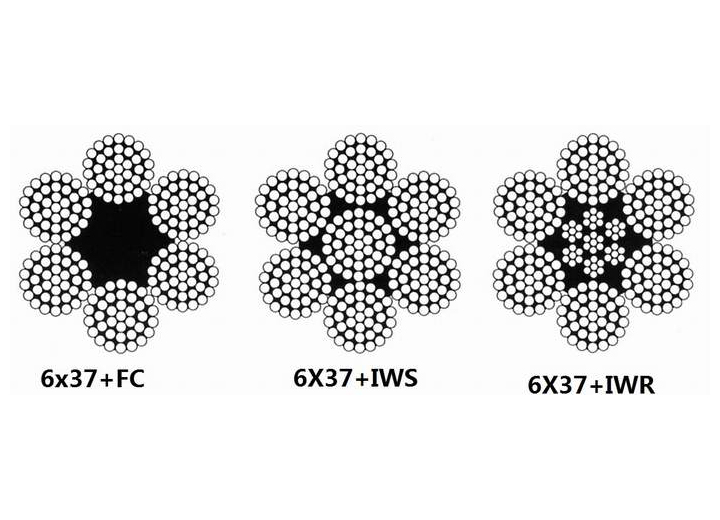

    (Construction):(Construction):6×37+FC 6×37+IWS 6×37+IWR

    Nominal Diameter
    Approx.Weight
    Nominal Tensile Strength of Rope(Mpa)
    1570
    1670 1770 1870 1960
    Minimun Breaking Load of Rope
    D NF SF IWR/IWS
    FC
    IWR/IWS
    FC IWR/IWS
    FC IWR/IWS
    FC IWR/IWS
    FC IWR/IWS
    mm kg/100m
    (KN)
    5 8.65 8.43 10 11.6 12.5 12.3 13.3 13.1 14.1 13.8 14.9 14.5 15.6
    6 12.5 12.1 14.4 16.7 18 17.7 19.2 18.8 20.3 19.9 21.5 20.8 22.5
    7 17 16.5 19.6 22.7 24.5 24.1 26.1 25.6 27.7 27 29.2 28.3 30.6
    8 22.1 21.6 25.6 29.6 32.1 31.5 34.1 33.4 36.1 35.3 38.2 37 40
    9 28 27.3 32.4 37.5 40.6 39.9 43.2 42.3 45.7 44.7 48.3 46.8 50.6
    10 34.6 33.7 40 46.3 50.1 49.3 53.3 52.2 56.5 55.2 59.7 57.8 62.5
    11 41.9 40.8 48.4 56 60.6 59.6 64.5 63.2 68.3 66.7 72.2 70 75.7
    12 49.8 48.5 57.6 66.7 72.1 70.9 76.7 75.2 81.3 79.4 85.9 83.3 90
    13
    58.5 57 67.6 78.3 84.6 83.3 90 88.2 95.4 93.2 101 97.7 106
    14
    67.8 66.1 78.4 90.8 98.2 96.6 104 102 111 108 117 113 123
    15
    77.9 75.8 90 104 113 111 120 118 127 124 134 130 141
    16
    88.6 86.3 102 119 128 126 136 134 145 141 153 148 160
    18
    112 109 130 150 162 160 173 169 183 179 193 187 203
    20 138 135 160 185 200 197 213 209 226 221 239 231 250
    22
    168 163 194 224 242 238 258 253 273 267 289 280 303
    24
    199 194 230 267 289 284 307 301 325 318 344 333 360
    26 234 228 270 313 339 333 360 353 382 373 403 393 423
    28 271 264 314 363 393 386 418 409

    443

    433 468 453 490
    30
    311 303 360 417 451 443 480 470 508 497 537 520 563
    32
    354 345 410 474 513 505 546 535 578 565 611 592 640
    34 400 390 462 535 579 570 616 604 653 638 690 668 723
    36
    448 437 518 600 649 639 690 677 732 715 773 749 810
    38 500 487 578 669 723 711 769 754 815 797 861 835 903
    40 554 539 640 741 801 788 852 835 903 883 954 925 1000
    42
    610 595 706 817 884 869 940 921 996 973 1052 1020 1100
    44 670 652 774 897 970 954 1031 1011 1093 1068 1155 1120 1210
    46 732 713 846 980 1060 1040 1130 1100 1190 1170 1260 1220 1320
    48 797 776 922 1070 1150 1140 1230 1200 1300 1270 1370 1330 1440
    50
    865 843 1000 1160 1250 1230 1330 1310 1410 1380 1490 1450 1560
    52 936 911 1080 1250 1350 1330 1440 1410 1530 1490 1610 1560 1690
    54
    101 983 1170 1350 1460 1440 1550 1520 1650 1610 1740 1690 1820
    56
    1090 1060 1250 1450 1570 1550 1670 1640 1770 1730 1870 1810 1960
    58 1160 1130 1350 1560 1680 1660 1790 1760 1900 1860 2010 1950 2100
    60 1250 1210 1440 1670 1800 1770 1920 1880 2030 1990 2150 2080 2250
    62 1330 1300 1540 1780 1920 1890 2050 2010 2170 2120 2290 2220 2400
    64 1420 1380 1640 1900 2050 2020 2180 2140 2310 2260 2240 2370 2560
    66 1510 1470 1740 2020 2180 2150 2320 2270 2460 2400 2600 2520 2720
    68 1600 1560 1850 2140 2320 2280 2460 2410 2610 2550 2760 2670 2890
    70 1700 1650 1960 2270 2450 2410 2610 2560 2770 2700 2920 2830 3060
    72 1790 1750 2070 2400 2600 2550 2760 2710 2930 2860 3090 3000 3240
    74 1890 1850 2190 2540 2740 2700 2920 2860 3090 3020 3270 3170 3420
    76 2000 1950 2310 2680 2890 2850 30890 3020 3260 3190 3450 3340 3610
    78 2110 2050 2430 2820 3050 3000 3240 3180 3440 3360 3630 3520 3800
    80 2210 2160 2560 2960 3200 3150 3410 3340 3610 3530 3820 3700 4000
    85 2500 2430 2890 3350 3620 3560 3850 3770 4080 3990 4310 4180 4520
    90 2800 2730 3240 3750 4060 3990 4320 4230 4570 4470 4830 4680 5060
    95 3120 3040 3610 4180 4520 4450 4810 4710 5100 4980 5380 5220 5640
    100 3460 3370 4000 4630 5000 4930 5330 5220 5650 5520 5970 5780 6250
    105 3810 3720 4410 5110 5520 5430 5870 5760 6230 6080 6580 6370 6890
    110 4190 4080 4840 5600 6060 5960 6450 6320 6830 6680 7220 7000 7570
    115 4580 4460 5290 6130 6620 6520 7050 6910 7470 7300 7890 7650 8270
    120 4980 4850 5760 6670 7210 7090 7670 7520 8130 7940 8590 8330 9000

    Main Applications:Various equipment for hoisting,derricking,lifting and drawing.

6×37 Steel Wire Rope

Wechat consulting

微信扫码咨询
Consult now 返回

Details

6×37 Steel Wire Rope(Ungalvanized and Galvanized)

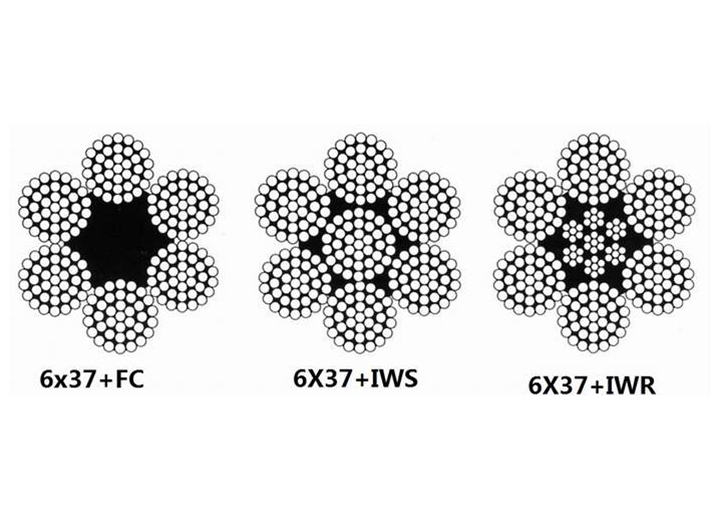

(Construction):(Construction):6×37+FC 6×37+IWS 6×37+IWR
