6X7+FC, 6X7+IWS Aircraft Cable

Category:Steel Wire Rope

  • 售后QQ: 点击这里给我发消息
  • 售后QQ: 点击这里给我发消息
Hotline:+86-532-68075169
  • Aircraft Cord(Aircraft Cable)

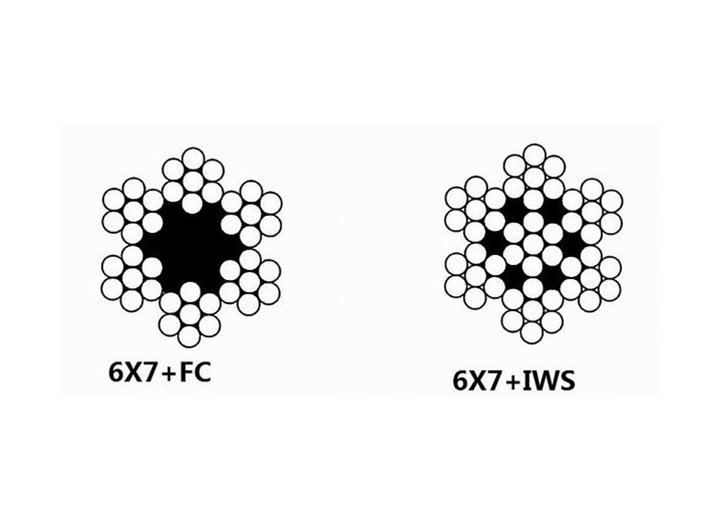

    (Construction):6×7+FC,6×7+IWS

    Diameter(mm)
    Nominal Tensile Strength of Wire(Mpa)
    Fibre Core-The Minimun Breaking Load of Rope(kN)
    Steel Core-The Minimun Breaking Load of Rope(kN)
    Fibre Core Approx.Weight of Rope (kg/100m)
    Steel Core Approx.Weight of Rope (kg/100m)
    Rope
    Wire
    1.58 0.17 1870 1.57 1.83 1.01 1.09
    1.70 0.19 1870 1.95 2.23 1.26 1.37
    1.80 0.20 1870 2.28 2.50 1.40 1.50
    2.15 0.24 1870 3.28 3.60 2.00 2.20
    2.50 0.28 1870 4.47 5.00 2.70 3.00
    3.50 0.34 1870 6.23 7.32 4.00 4.40
    3.60 0.40 1870 8.7 10.10 5.50 6.20
    4.10 0.45 1770 10.4 13.20 7.00 7.95
    4.50 0.50 1770 12.8 15.00 8.70 9.60
    5.40 0.60 1670 17.5 20.40 12.50 13.80

    Main Applications:Suitable for important machinery and instrument.

6X7+FC, 6X7+IWS Aircraft Cable

Wechat consulting

微信扫码咨询
Consult now 返回

Details

Aircraft Cord(Aircraft Cable)

(Construction):6×7+FC,6×7+IWS

Diameter(mm)
Nominal Tensile Strength of Wire(Mpa)
Fibre Core-The Minimun Breaking Load of Rope(kN)
Steel Core-The Minimun Breaking Load of Rope(kN)
Fibre Core Approx.Weight of Rope (kg/100m)
Steel Core Approx.Weight of Rope (kg/100m)
Rope
Wire
1.58 0.17 1870 1.57 1.83 1.01 1.09
1.70 0.19 1870 1.95 2.23 1.26 1.37
1.80 0.20 1870 2.28 2.50 1.40 1.50
2.15 0.24 1870 3.28 3.60 2.00 2.20
2.50 0.28 1870 4.47 5.00 2.70 3.00
3.50 0.34 1870 6.23 7.32 4.00 4.40
3.60 0.40 1870 8.7 10.10 5.50 6.20
4.10 0.45 1770 10.4 13.20 7.00 7.95
4.50 0.50 1770 12.8 15.00 8.70 9.60
5.40 0.60 1670 17.5 20.40 12.50 13.80


Main Applications:Suitable for important machinery and instrument.
